2016 Brausse 1060ER Elite Die Cutter with Blanking

Automatic Die Cutting and Creasing with Blanking and Stripping. Currently installed and in production.

Maximum Sheet Size: 1060 x 760mm

Minimum Sheet Size: 400 x 350mm

Maximum Cutting Pressure: 260 Tons

Maximum Mechanical Speed: 7,500 sheets/hour

Stock Range

Paper - from 90 g/m2

Board - up to 100 g/m2

Corrugated - up to 4mm

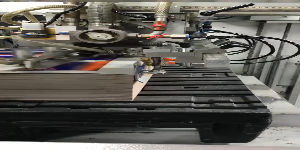

FEEDER

• Three pick up and four forward-suck heads with angle adjustment to handle different kinds of materials.
• Preloading device with rail cart and scaled gate.
• Manual side adjustment of pallet table (+/- 40 mm).
• Non-stop feeder with automatic pile lift.
• Side blowers adjustable according to sheet size for smooth feeding, especially for thin paper transport.

FEED TABLE

• Sheet slow-down device of feeder belts to assure accurate position of the sheet to the front lays (electro-pneumatically adjustable).
• Synchronizing device to adjust the sheet positioning to the front lay by hand during production.
• Covered with an anti-static stainless steel plate.
• Feed table inlet equipped with lateral ramps.
• Four individually adjustable front lays at the operation side of the machine.
• Ultrasonic double sheet detector (without contact).
• Sheet hold-down device (guiding the sheets to the front lays).
• Upper frame with manual lifting device.
• Pull and push convertible side lays ( OS and OOS ) with photo sensor sheet arrival control.

DIECUTTING SECTION

• Precision worm gear crank toggle driving system to ensure smooth and dynamic lower platen movement.
• Short stroke movable platen, driven by eccentric worm gear and toggle mechanism allows large motion angle resulting in minimum number and size of nicks at maximum production speed.
• Precision stationery upper platen.
• State-of-art 3 cam index gripper bar drive system to ensure smooth and precise gripper bar intermittent movement.
• Pneumatic clutch/brake for main drive system.
• Motorized cutting force setting by push button.
• Digital strain gauge die cutting pressure tonnage display at HMI with adjustable pressure limit protection.
• Eight high-precision alloy gripper bar.
• High quality pre-stretched gripper bar drive chain.
• Torque limit safety clutch to protect the index drive system in case of gripper bar crash.
• Double cam driven gripper opener and front lay swing frame without position restore spring for smooth and accurate sheet register and take off.
• Pneumatic push button die chase locking mechanism to ensure safe and operator-friendly die changing.
• 5mm hardened cutting plate or 4 + 1mm sandwich plate (optional) on top of 15mm precision synthetic supporting plate with +/-0.9mm micro adjustment for quick setup and make ready.
• Automatic main chain greasing system.

STRIPPING SECTION

• Complete set of stripping tools with upper and lower stripping pins.
• Centerline system for quick stripping die setup.
• Integrated Quick Locking System.
• Automatic quick locking device for the upper tool integrated in the machine.
• Funnel for waste guidance.
• Efficient and smooth cam running curve drives the stripping and blanking tooling with large motion angle to ensure clean and tiny stripping and blanking at speed.

BLANK PILE DELIVERY SECTION

• Automatic binder sheet inserter with electrical sheet presence control.
• Automatic selection of suction cups according to the sheet size.
• Constant compression level system (NCT).
• Continuous pile lowering whist maintaining a constant height of the pile.
• Automatic pallet changing device.
• Automatic non-stop device.
• Waste or skeleton removal apron.
• Integrated Quick Locking System.
• Upper blanking tool mounting frame can be pulled out for quick job setup and make ready.
• Full sheet delivery can be achieved with die cutting and stripping only, while blanking is not necessary.
