2015 Bell & Howell Producer 22 Inserter

Hunkeler UW6 Unwinder

Continuous Forms Cutter

• High Speed Dual Drive Guillotine Cutter
• Suitable for 1-up and 2-up forms
• Up to 30,000 cuts per hour (up to 60k sheets per hour)
• Dual pin-less drive
• Automatic Phasing System – aligns the cut position to the image on the web using print registration mark
• Automatic stop for paper end
• Signe or Double Horizontal Cut (Chip cut) option
• Margin Trim and Gutter Cut Options

Cut Sheet Vacuum Feeder

• Up to 48,000 11” sheets/hour
• Bottom Feeder based on Servo-driven Vacuum Drum
• High Stacking Capacity of up to 6,000 Sheets (8.5” x 11”, 18lb bond basis)
• Automatic miss-feed and multiple feed detector

Dual Deck Accumulator

• Assembles each document based on camera or barcode readers

Folder

• Heavy duty buckle folder with 4 plates
• Half Fold (V-Fold), Letter Fold (C Fold), Accordion Fold (Z Fold), Double Parallel Fold (Quarter Fold)

Rotary Friction Feeder

Producer 22 Base:

6 Stations

• Position 6: Friction Feeder with BC800 reader (closest to sheet feeder)
• Position 5: Blank
• Position 4: Blank
• Position 3: Rotary Feeder with BC800 reader
• Position 2: Rotary Feeder (Barcode reader pre-arrangement)
• Position 1: Rotary Feeder (Barcode reader pre-arrangement, closest to stuffing module)

In-line Turnover

Envelope Feeder Autoloader

Stuffing Engine

By-pass Divert

Sealer Module

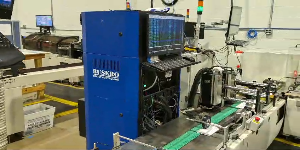

Buskro Inkjet System

Delivery System:

(2) BC800 Readers for Log

Ramp with By-pass

Meter Stand for Fixed Weight Metering

RA20 Shingling Conveyor with Off-setting

Flat Output Conveyor

Input Channel #1:

MG1 Merger for 2-up Continuous

UTD 90 Turn Bar

TA400 30K Cutter (Including side slitters)

(2) BC800 Statement Readers

Input Channel #2:

Shingling Autoloader

Horizontal Cut Sheet Feeder

BC800 Statement Reader (bottom mounted)

14” Capability

Star Interface to combine (2) Input Channels

Dual Decked Accumulator with (4) Plate Folder

RACP For Sub-setting

Input Channel Interface

Inserter Specifications:

#10 Cycling Speed: 22,000 Envelopes/Hour

6x9 Cycling Speed: 18,000 Envelopes/Hour

#14 Cycling Speed: 22,000 Envelopes/Hour

Maximum Insert Stack Thickness: 0.4” (10mm)

Envelope Capacity (w/ LH autoloader): 1,000 Envelopes

Envelope Specifications:

Paper Weight: 18 – 52 lb bond (70 – 200gsm)

Maximum Envelope Size (B x A): 6.3” x 13” (160 x 330mm)

Minimum Envelope Size (B x A): 4” x 7” (100 x 180mm)

Maximum Envelope Flap (C): 2.36” (60mm)

Minimum Envelope Flap ©: 1.1” (28mm)

Maximum Envelope Length (D=B+C): 8.7” (220mm)

Maximum Insert Width (I): 12.4” (316mm)

Maximum Envelope Throat Depth (S): 1.2” (30mm)

Minimum Envelope Throat Depth (S): 0.32” (8mm)

Minimum Insert to Envelope Side Clearance (L)2: 0.28” (7mm) per side (14mm total)

Recommended Insert to Envelope Side Clearance (L)2: 0.4” (10mm) per side (20mm total)

Minimum Insert to Envelope Height Clearance: 0.4” (10mm)

Minimum Overlap between Insert and Lateral Flap (M): 0.4” (10mm) per side

Minimum Lateral Flap (O=L+M): 0.67” (17mm)

Slit/Merger Specifications:

Maximum Web Width (2-up with or without pin-feed): 20” (510mm)

Minimum Web Width (2-up with or without pin-feed): 13” (330mm)

Continuous Forms Cutter Specifications:

Maximum Document Height: 17” (432mm)

Minimum Document Height: 4” (102mm)

Maximum Document Width: 11” (280mm)

Minimum Document Width: 7” (178mm)

Margin Trim: 0” - 1” (25mm)

Document Weight: 18 lb bond (70gsm) to 28 lb bond (100gsm)

Double Blade Chip Cut Width: 0.17” (4.2mm)

High Speed Sheet Feeder:

Document Height: 8” (203mm) to 14” (305mm)

Document Width: 8” (203mm) to 12” (305mm)

Feed Speed: Up to 48,000 sheets/hour
