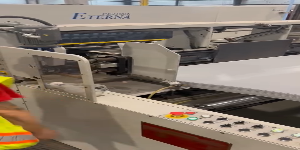

2019 Brausse Eterna PE21000S 82” Automatic Die Cutter (Corrugated)

SOLD - CONTACT US FOR A SIMILAR OPTION

2019 Brausse Eterna PE21000S 82” Automatic Die Cutter (Corrugated)

Description

Automatic Flatbed Diecutting & Creasing Machine with Servo Drive Lead Edge Feeder


FEEDER

  • Dynamic torque servo motor driven differential speed belt lead edge feeder with extended feeding table and side alignment
  • Imported top quality feeding belt
  • Motorized adjustment of left and right joggers with alternative possibility of auto centering or individual adjustment
  • Motorized front gauge cross and forward/backward adjustment
  • Feeder vacuum system equipped with high volume blower
  • Side alignment system with left or right adjustable belt angle degree sheet alignment at choice in accordance with the printing register side
  • Height adjustable roller brush and rubber pressing wheels on the extended feeding table for better sheet control, especially for handling of warp corrugated sheet
  • Feeding stroke adjustment setting on LCD screen


DIECUTTING SECTION

  • Crank and worm gear, toggle drive system for the lower platen
  • Stationary high precision upper platen
  • Safety door and diechase safety locking system
  • Pneumatic clutch/brake
  • Overloading protection drive declutch
  • Left and right front lay locking blocks, separating and synchronizing adjustment available
  • State-of-the-art 3 cam index gripper chain drive
  • Centerline positioning system for die mold & stripping board (compatible with Centerline II)
  • Self-diagnostic trouble display
  • Automatic recycling lubrication system with oil pressure gauge and oil pressure switch
  • Sheet arrival and departure check photo sensor throughout the machine
  • Cutting pressure fine adjustment wheel with position indicate gauge
  • 7 pieces of gripper bar with 24 spikes per bar
  • Automatic main gripper bar drive chain lubrication
  • Air cushion underneath the cutting plate for easy pulling out and pushing in operation


STRIPPING SECTION

  • Centerline system (compatible to centerline II)
  • Motorized upper frame suspending hoister with 500mm raise easy access for setting operation
  • Lead edge waste removal system
  • Centerline system with quick lock pin on upper frame


DELIVERY

  • Bundle delivery with counter and non-stop cylinder
  • Stopper wheel buffer & main chain protection device


Machine Specifications:

Maximum Sheet Size : 2100 x 1300mm

Minimum Sheet Size : 850 x 600mm

Maximum Cutting Size : 2080 x 1280mm

Inner Chase Size : 2100 x 1310mm

Maximum Mechanical Speed : 4500cycles/hour

Maximum Cutting Pressure : 500tons

Stock Range : E, B, C, A and AB flute corrugated board

Cutting Rule Height : 23.8mm

Minimum Gripper Margin : 15mm


At Capital Equipment Solutions, we pride ourselves on being your go-to partner for new and pre-owned printing and packaging equipment, as well as turnkey solutions, including delivery and installation. Our extensive inventory features high-quality, late-model equipment from industry-leading manufacturers such as Muller Martini, Bobst, Brausse, Heidelberg, Komori, KBA, MANRoland Goss, and more. In addition to our turnkey services, our expert operations team can assist with insurance restoration, removals, relocation, and plant liquidation. We’re dedicated to providing you with personalized guidance and comprehensive solutions that cater to your unique production requirements. Don’t forget to explore our full range of offerings on our website, and feel free to reach out to our expert team for any questions or assistance.

Specifications

ManufacturerBrausse Eterna
ModelPE21000S 82” Automatic Die Cutter (Corrugated)
Year2019
ConditionUsed
