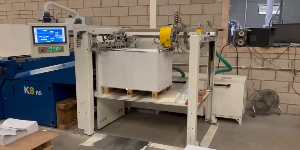

2015 MBO K8RS 6SKTL-FP130

UPGRADED FEEDER SYSTEM. Fully furbished by MBO with over 60,000 USD spent on replacement parts!

The K8RS is the frontrunner among the MBO combi folding machines. Based on the high-performing K8, the K8RS is trimmed for peak productivity. In addition, it features valuable, performance-optimizing enhancements which not only allow for the outstanding production speed of the folding machine but also guarantee the highest production quality and stability.

The valuable upgrades that are provided as standard and increase productivity and production stability are what distinguish the K8RS. The palletized feeder of the K8RS can process pile heights of up to 130 cm (51 1/4”) . 6 buckle plates, Super SKTL Configuration. Production speed of 275 m/min

Configuration:

6 Buckle Plates

2 Cross Fold Knives

1 Folding Plate Post Cross Fold

Slitter Shaft Cassette for quick access

2015 Palamides Alpha 700 Delivery

Features include:

·       Super-KTL Configuration - Standard feature In the Super-KTL configuration, you can get a wider range of folding types out of your machine. This configuration has a buckle plate downstream of the cross fold knife (first knife). This allows an additional fold to be realized parallel to the knife fold. Depending on the format, this can be a roll fold or a zig-zag fold. In addition, the sheet runs through a full pair of slitter shafts after the buckle plate.

·       M1 Advanced machine control with touchscreen - The M1 Advanced machine control can be operated from any folding unit. The screen diagonal of the adjustable touchscreen is 15.6”. The operator is optimally supported when setting up a new job. Common standard folding impositions are preconfigured in “Quick Mode”.

·       FP 800/120 Palletized feeder with ultrasonic double sheet control

·       Feeder head Vacujet RS in the palletized feeder

·       Vivas (Double Vacubelt and Vacutable)

·       Maintenance and noise-free timing belt drive and belt drive

·       Slitter shaft cassette for single rear slitter shafts

·       Vacuknife

·       Cross fold sheet stop for ejection of waste paper

·       Easily accessible cross fold and three-fold areas

Specifications:

Pile height:

·       Max: 51 ¼” (1,300 mm)

Infeed width

·       Min: 9 7/8” (250 mm)

·       Max: 30 11/16” (780 mm)

Infeed length

·       Min: 9 7/8” (250 mm)

·       Max: 471/4” (1200 mm)

Folding Length:

·       Min: 2 3/8” (60 mm)

Speed:

·       Min: 30 m/min

·       Max: 275 m/min
